House Plan #TR-3837rls

Name: TR-3837rls - AmazingPlanscom
SKU: TR-3837rls
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

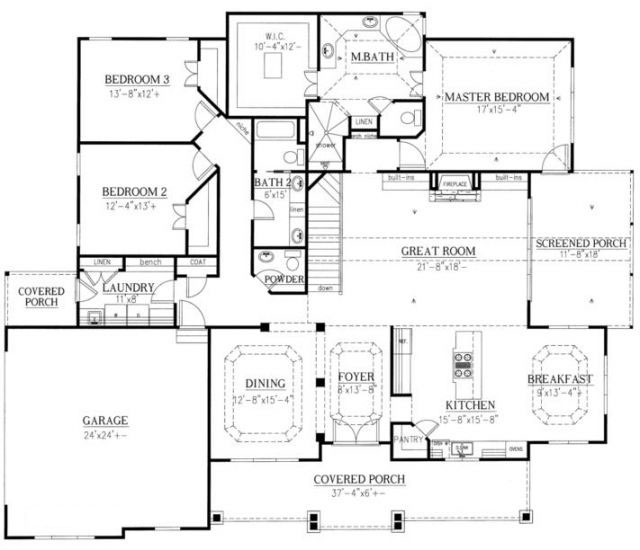

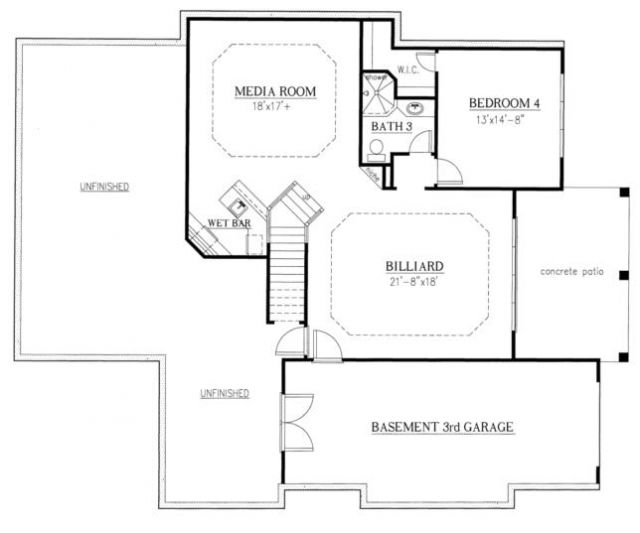

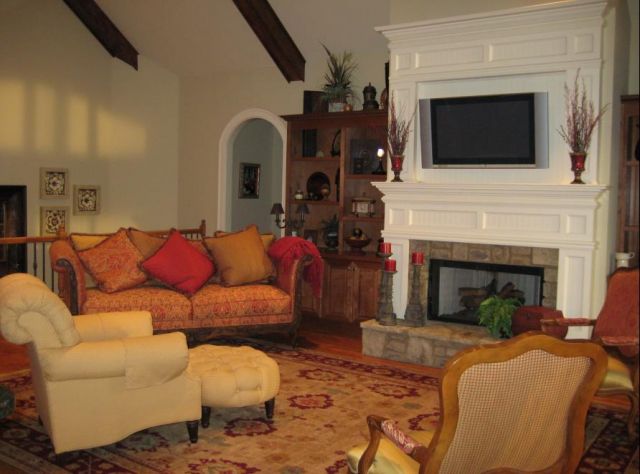

Live on the main level and entertain in the lower terrace/finished basement level. Great craftsmen details on the outside and it. The perfect home to capture views to the side. Vaulted great room open kitchen master suite and screened porch all designed to let you see that side lake mountain or golf course view. The one level ranch with finished lower terrace/finished basement level plan is a great way to gain a lot of square footage but keep your building costs down.

3837 sq ft

Packages From $1,500.00

See What’s Included ›

Select Package⌄

Reproducible Vellum$1,500.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,650.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

PDF (Single Build)$1,500.00DIGITAL PDF PACKAGE Recommended

Select Foundation⌄

Basement Foundation$0.00 Basement unfinishedWalkout Basement Foundation$0.00 Basement unfinished

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$200.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Overall Living Sq Ft	3837
Plan Type	House
Plan Sets	CAD File, PDF File, Reproducible Vellum
Foundation Options	Basement, Walkout Basement
Bedrooms	4
Full Baths	3
Garage Stalls	2
Levels	1
Width Feet	73
Width Inches	4
Depth Feet	62
Depth Inches	0
Ridge Height	29'
Main Ceiling Height	94
Wall Construction	2x4
Exterior Finish	Siding/Shingle/Stone
Floor One Sq Ft	2670
Floor Two Sq Ft	0
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	1167
Porches Sq Ft	560
Garage Sq Ft	580
Total Covered Sq Ft	6480
Balcony Sq Ft	0
Main Roof Pitch	12:12
Foundation	Basement, Walkout Basement
Master Bedroom Floor	1
Laundry Floor	1
Reverse Options	Right-Reading
Half Baths	1
