House Plan #TR-2072kr

Name: TR-2072kr - AmazingPlanscom
SKU: TR-2072kr
Availability: InStock

Email to a Friend Be the first to review this product

Price range: $1,150.00 through $1,250.00

Quick Overview

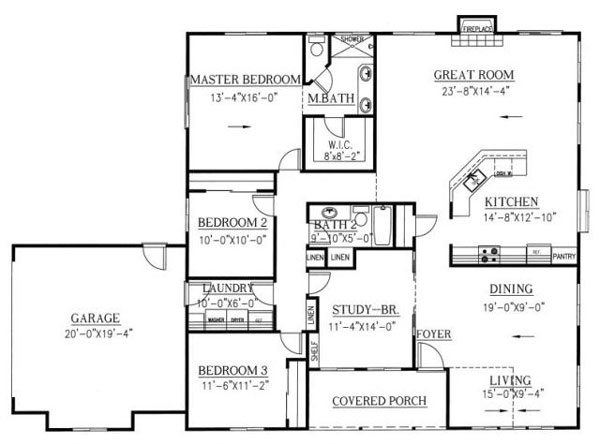

This home is designed for a corner lot with side loading. It has sliding doors a fireplace formal dining room formal living room and a great/gathering room. It has an open floor plan with vaulted ceilings and arched windows.

2072 sq ft 190 levels

Packages From $950.00

See What’s Included ›

Reproducible Vellum$950.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,050.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

PDF (Single Build)$950.00DIGITAL PDF PACKAGE Recommended

Crawlspace Foundation$0.00Slab Foundation$0.00

Right Reading Reverse$200.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Overall Living Sq Ft	2072
Plan Type	House
Plan Sets	CAD File, PDF File, Reproducible Vellum
Foundation Options	Crawl Space, Slab
Bedrooms	3
Full Baths	2
Garage Stalls	2
Levels	190
Width Feet	66
Width Inches	8
Depth Feet	49
Depth Inches	2
Ridge Height	18'
Wall Construction	2x4
Exterior Finish	Siding
Floor One Sq Ft	2072
Floor Two Sq Ft	0
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	0
Porches Sq Ft	0
Garage Sq Ft	0
Total Covered Sq Ft	0
Balcony Sq Ft	0
Main Roof Pitch	5:12
Foundation	Crawl Space, Slab
Master Bedroom Floor	1
Laundry Floor	195
Reverse Options	Right-Reading
