House Plan #RLD-Kiwi

Name: RLD-Kiwi Garage Apartment - AmazingPlanscom
SKU: RLD-Kiwi
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

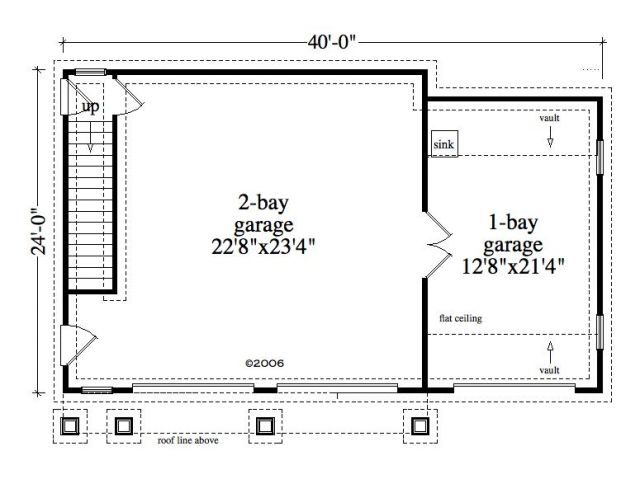

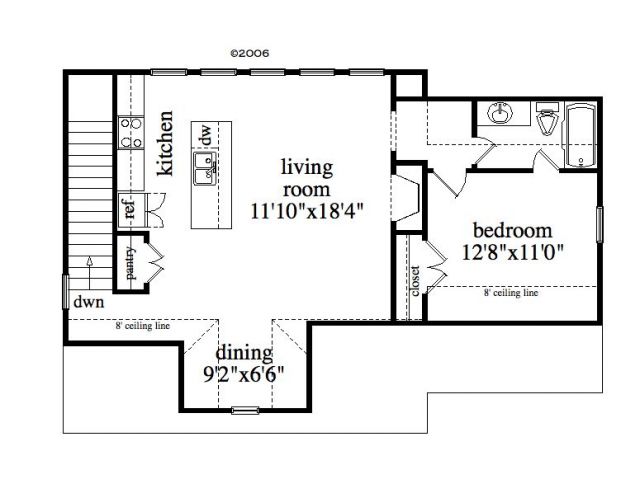

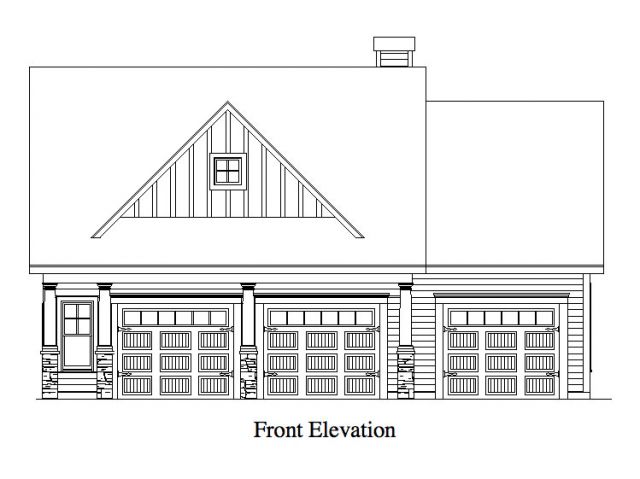

Detached 3 Car Garage with a cozy apartment above is a nice complement to any existing house or does nicely as a stand-alone garage. The front elevation has a traditional gable and columns between the bays. Upstairs there is a bedroom with a full bath a living room dining area and a complete kitchen. Actual plan may vary from photos or renderings.

796 sq ft

Packages From $550.00

See What’s Included ›

Select Package⌄

5 Plan Sets$550.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Reproducible Vellum$575.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$650.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$150.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Reverse Options

Exterior Wall Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

796

Plan Type

Garage

Plan Sets

5 Plan Sets, CAD File, Reproducible Vellum

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

24'1"

Wall Construction

2x4; 2x6; 2x8

Exterior Finish

stone, siding, board and batton

Floor One Sq Ft

Floor Two Sq Ft

796

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

924

Total Covered Sq Ft

Balcony Sq Ft

Main Roof Pitch

12:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

195

Additional Information

Actual plan may vary from photos or renderings.

Reverse Options

Right-Reading

Exterior Wall Options

2x6 Exterior Walls, 2x8 Exterior Walls
