House Plan #RLD-Arlington

Name: RLD-Arlington - AmazingPlanscom
SKU: RLD-Arlington
Availability: InStock

Email to a Friend Be the first to review this product

$894.00 – $1,999.00

Quick Overview

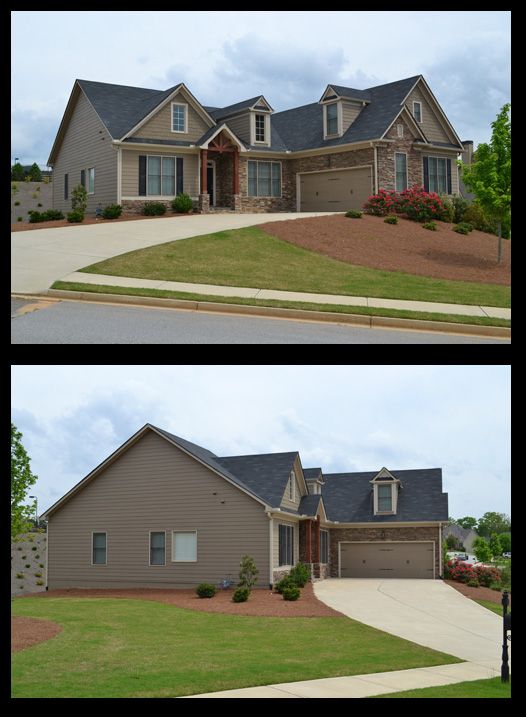

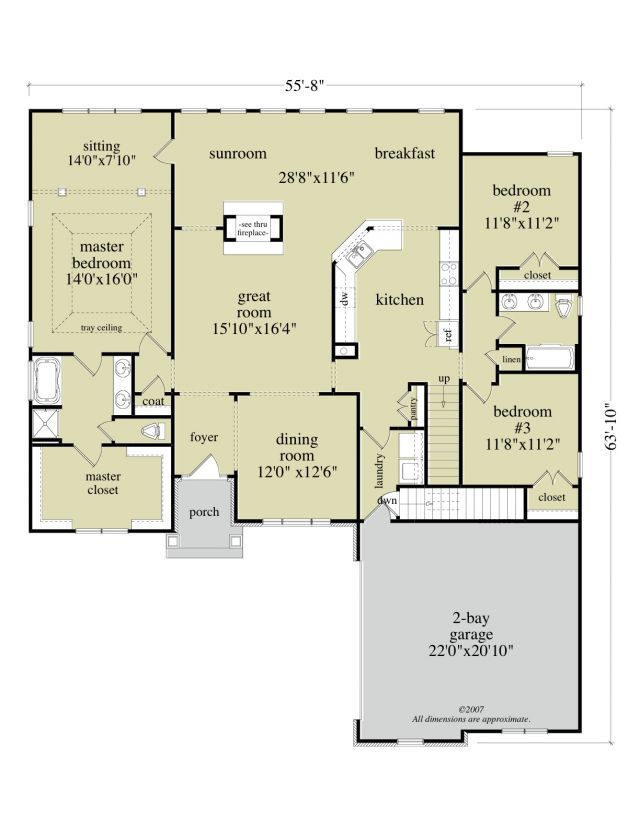

This rustic / craftsman style ranch fits right in Mountain environments or anywhere you would need a basement (Slab and Crawl Space foundations available). The courtyard style garage helps keep the footprint neat. The inside layout is a split-bedroom plan with the master suite on the left opposite the kitchen and the two secondary bedrooms on the right side of the house. The rectangle shaped kitchen is open to the breakfast and sun room. The great room and sun room are separated by an optional see-thru fireplace. The master suite has a sitting room and the master bath has a separate tub and shower double vanities a water closet and a walk-in closet. There is also an optional bedroom upstairs for storage or a home office. Actual plan may vary from photos or renderings.

2201 sq ft

Packages From $894.00

See What’s Included ›

Select Package⌄

5 Plan Sets$894.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

8 Plan Sets$979.00DIGITAL PDF PACKAGE Recommended

Reproducible Vellum$1,149.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$1,749.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Basement Foundation$0.00

Note:: Basement is unfinished

Crawlspace Foundation$125.00Slab Foundation$125.00

Additional Options⌄

Right Reading Reverse$125.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Reverse Options

Exterior Wall Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Overall Living Sq Ft	2201
Plan Type	House
Plan Sets	5 Plan Sets, 8 Plan Sets, CAD File, Reproducible Vellum
Foundation Options	Basement, Crawl Space, Slab
Bedrooms	3
Full Baths	2
Garage Stalls	2
Levels	2
Width Feet	55
Width Inches	8
Depth Feet	63
Depth Inches	10
Ridge Height	23'0"
Wall Construction	2x4; 2x6; 2x8
Exterior Finish	siding, stone, cedar shake
Floor One Sq Ft	2201
Floor Two Sq Ft	0
Floor Three Sq Ft	0

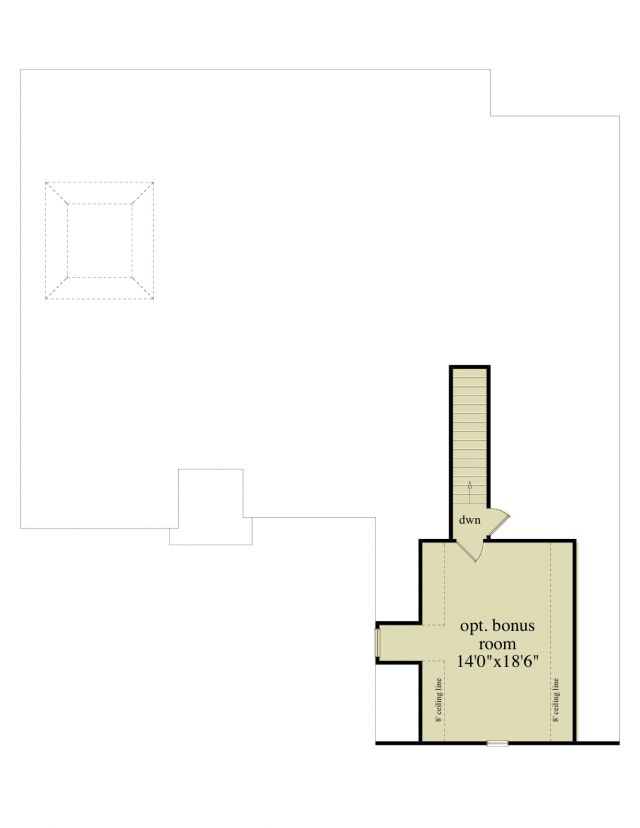

Bonus Sq Ft	287
Basement Sq Ft	0
Porches Sq Ft	0
Garage Sq Ft	460
Total Covered Sq Ft	0
Balcony Sq Ft	0
Main Roof Pitch	12:12
Foundation	Basement
Master Bedroom Floor	1
Laundry Floor	1
Additional Information	Actual plan may vary from photos or renderings.
Reverse Options	Right-Reading
Exterior Wall Options	2x6 Exterior Walls, 2x8 Exterior Walls
Optional Foundation	Slab, Crawl Space
