House Plan #hpg-1604B

Name: hpg-1604B - AmazingPlanscom
SKU: hpg-1604B
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

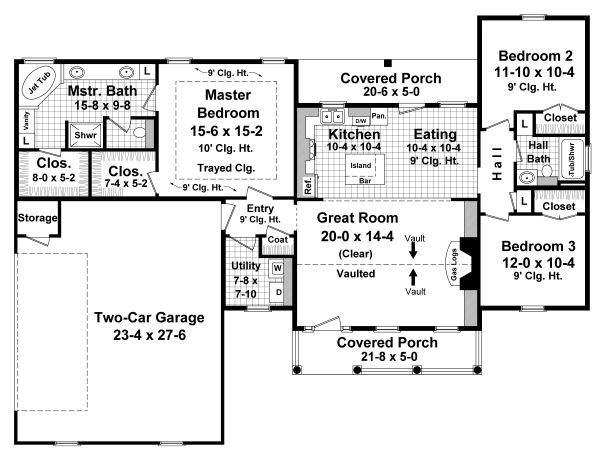

This home provides a very functional split-floor plan layout with many of the features that your family desires. Expansive master bedroom and bath with plenty of storage space in the his and her walk-in closets. Large great room with vaulted ceiling and gas log fireplace. Front and rear porches. Open kitchen layout with plenty of counter space for that growing family. Great value with a wide variety of innovative features. This home also features 6″ exterior walls to make room for additional insulation. Make this your home today!

1604 sq ft

Packages From $335.00

See What’s Included ›

Select Package⌄

5 Sets$335.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Reproducible Set$460.00DIGITAL PDF PACKAGE Recommended

PDF (Single Build)$435.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$655.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Crawlspace Foundation$0.00Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Mirror Reverse$50.00

Mirrors the plan layout. Text and dimensions may appear reversed, so this option is mainly for basic orientation review.

Right Reading Reverse$150.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Overall Living Sq Ft	1604
Plan Type	House
Plan Sets	5 Sets, CAD File, PDF File, Reproducible Set
Foundation Options	Crawl Space, Slab
Bedrooms	3
Full Baths	2
Garage Stalls	2
Levels	1
Width Feet	65
Width Inches	0
Depth Feet	49
Depth Inches	0
Ridge Height	22 ft 1 in
Main Ceiling Height	307
Wall Construction	2x6
Exterior Finish	Brick/Siding
Floor One Sq Ft	1604
Floor Two Sq Ft	0
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	0
Porches Sq Ft	250
Garage Sq Ft	625
Total Covered Sq Ft	2479
Balcony Sq Ft	0
Main Roof Pitch	8:12
Foundation	4522,4523
Master Bedroom Floor	1
Laundry Floor	1
Additional Information
Reverse Options	Mirror, Right-Reading
Additional Sets	1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
