House Plan #H3041A

Name: H3041A - AmazingPlanscom
SKU: H3041A
Availability: InStock

Email to a Friend Be the first to review this product

$1,950.00 – $3,690.00

Quick Overview

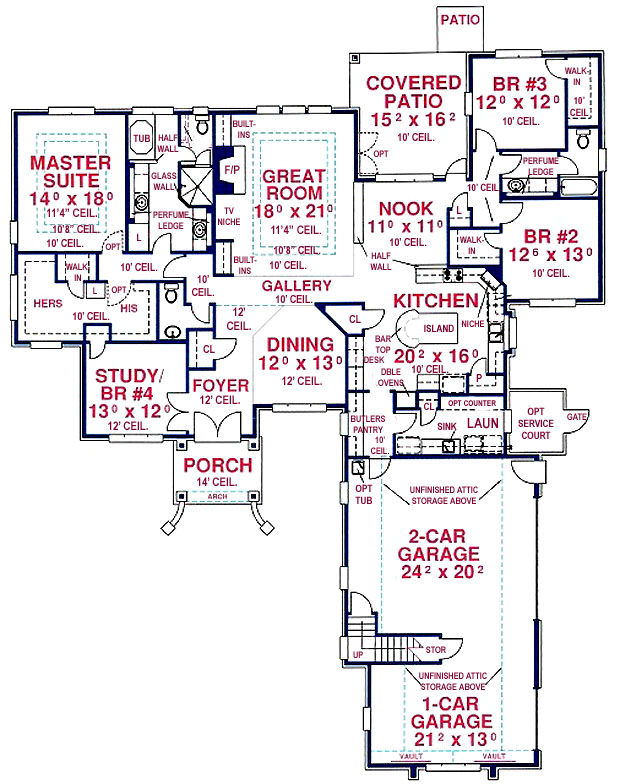

A well placed Study off the Foyer provides space for a home office, library or guest suite. Stepped ceiling, an exquisite bathroom, and large walk-in his and hers closets enhance the Master Suite. The Gourmet Kitchen includes an island with an eat at bartop, cooktop, double ovens, microwave, trash compactor, built-in (recessed) refrigerator, and a butler’s pantry, in addition to a second pantry.
546 sq. ft. unfinished attic storage area over garage is not included in square footage tabulation. Including this room the total covered area of this home is 4922 sq. ft.

3041 sq ft

Packages From $1,950.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,950.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$3,045.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00Crawlspace Foundation$300.00Basement Foundation$330.00

Note:: Basement is unfinished

Walkout Basement Foundation$450.00

Note:: Basement is unfinished

Additional Options⌄

Mirror Reverse$35.00

Mirrors the plan layout. Text and dimensions may appear reversed, so this option is mainly for basic orientation review.

Right Reading Reverse$195.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

Additional Information

Overall Living Sq Ft

3041

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Basement, Crawl Space, Slab (included), Walkout Basement

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

23'-4"

Main Ceiling Height

10'

Wall Construction

2x4 wood framing

Exterior Finish

Brick veneer on entire house.

Floor One Sq Ft

3041

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

319

Garage Sq Ft

1016

Total Covered Sq Ft

4376

Balcony Sq Ft

Main Roof Pitch

7' 12"

Foundation

Basement, Crawl Space, Slab, Walkout Basement

Master Bedroom Floor

Laundry Floor

Additional Information

No Materials List available.

Reverse Options

Mirror, Right-Reading

Half Baths

Optional Foundation

Basement, Walkout Basement
