House Plan #H3003A

Name: H3003A - AmazingPlanscom
SKU: H3003A
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

Ceiling heights are 12′ in the Great Room, Kitchen and Nook, 14′ in the Foyer and Dining Room, 10′ in the Master Bedroom and Bath, and 8′ in the secondary bedrooms.

3003 sq ft

Packages From $1,950.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,950.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$3,045.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00Crawlspace Foundation$300.00Basement Foundation$330.00 Basement unfinishedWalkout Basement Foundation$450.00 Basement unfinished

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Mirror Reverse$35.00

Mirrors the plan layout. Text and dimensions may appear reversed, so this option is mainly for basic orientation review.

Right Reading Reverse$195.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Ceiling heights are 12′ in the Great Room, Kitchen and Nook, 14′ in the Foyer and Dining Room, 10′ in the Master Bedroom and Bath, and 8′ in the secondary bedrooms.

Additional Information

Overall Living Sq Ft

3003

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Basement, Crawl Space, Slab (included), Walkout Basement

Bedrooms

Full Baths

Half Baths

3986

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

28'8"

Main Ceiling Height

12'

Wall Construction

8" Block first floor, 2" x 4" frame second floor

Exterior Finish

Stucco

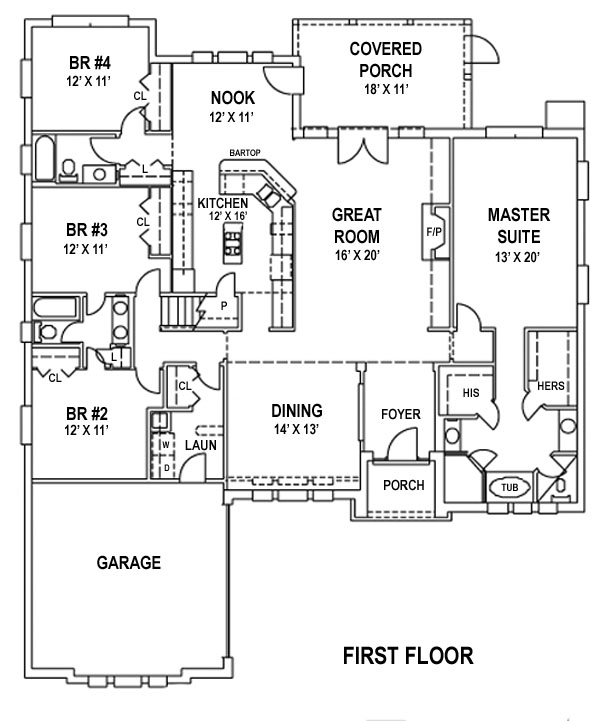

Floor One Sq Ft

2527

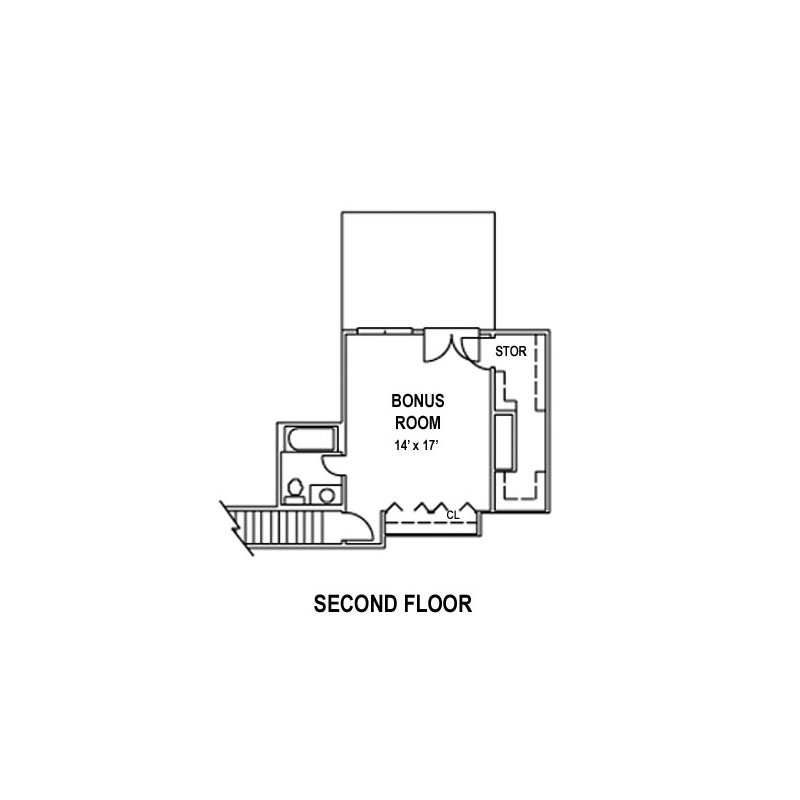

Floor Two Sq Ft

476

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

277

Garage Sq Ft

454

Total Covered Sq Ft

3734

Balcony Sq Ft

Main Roof Pitch

7' 12"

Foundation

Basement, Crawl Space, Slab, Walkout Basement

Master Bedroom Floor

Laundry Floor

Additional Information

No Materials List available.

Reverse Options

Mirror, Right-Reading

Optional Foundation

Basement, Walkout Basement
