House Plan #H1996A

Name: H1996A - AmazingPlanscom
SKU: H1996A
Availability: InStock

Email to a Friend Be the first to review this product

Price range: $1,380.00 through $2,655.00

Quick Overview

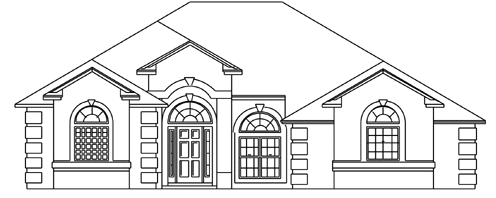

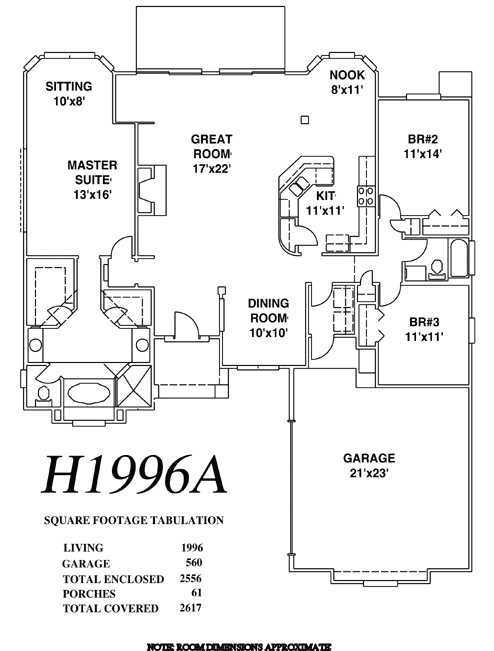

Arched windows across the front only. Back windows have transom windows above for extra light. Half wall in Dining Room with column at the end. Master Bedroom has large transom window up high. (2) 8′ sliding glass doors across the back.

1996 sq ft

Packages From $1,345.00

See What’s Included ›

PDF (Single Build)$1,345.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$2,040.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Slab Foundation$0.00Crawlspace Foundation$300.00Basement Foundation$300.00

Note:: Basement is unfinished

Walkout Basement Foundation$420.00

Note:: Basement is unfinished

Mirror Reverse$35.00

Mirrors the plan layout. Text and dimensions may appear reversed, so this option is mainly for basic orientation review.

Right Reading Reverse$195.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

To view similar 3 BR designs please search our plans H1801A, H1802A, H1802B, H1816A, H1820A, H1882A, H1912B, H1989A, H1994A and H2234B. To view similar plans with a full basement please search H1865A and H2316A.

Additional Information

Overall Living Sq Ft

1996

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Basement, Crawl Space, Slab (included), Walkout Basement

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

22' 0"

Main Ceiling Height

10'1"

Wall Construction

2" x 4" frame

Exterior Finish

Stucco

Floor One Sq Ft

1996

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

560

Total Covered Sq Ft

2617

Balcony Sq Ft

Main Roof Pitch

7' 12"

Foundation

Basement, Crawl Space, Slab, Walkout Basement

Master Bedroom Floor

Laundry Floor

Additional Information

No Materials List available.

Reverse Options

Mirror, Right-Reading

Optional Foundation

Basement, Walkout Basement
