House Plan #H1880A

Price range: $1,380.00 through $2,535.00

Quick Overview

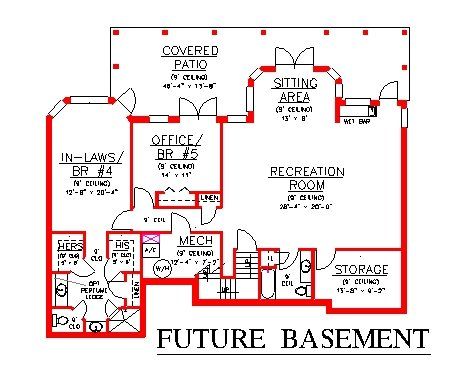

This walk-out basement plan was specially designed for a spectacular view of the rear of a sloping lot from both levels. Ledgestone lap siding and shake siding combine with triumphant gables and corbel brackets to create an inviting craftsman exterior. Total living area is 3830 square feet if future basement is finished. Numerous dramatic french doors from various locations grant access to the spacious rear porches on both levels.
To view similar basement designs please search our plans H1748A, H1784A, H1792A, H1865A, H1920B, H3256A, and H3830A.

1880 sq ft

Choose Your Plan Package

Details

This walk-out basement plan was specially designed for a spectacular view of the rear of a sloping lot from both levels. Ledgestone lap siding and shake siding combine with triumphant gables and corbel brackets to create an inviting craftsman exterior. Total living area is 3830 square feet if future basement is finished. Numerous dramatic french doors from various locations grant access to the spacious rear porches on both levels.
To view similar basement designs please search our plans H1748A, H1784A, H1792A, H1865A, H1920B, H3256A, and H3830A.

Additional Information

Overall Living Sq Ft

1880

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Basement, Crawl Space, Slab, Walkout Basement (included)

Bedrooms

3

Full Baths

2

Garage Stalls

3

Levels

2

Width Feet

57

Width Inches

2

Depth Feet

83

Depth Inches

10

Ridge Height

24'

Main Ceiling Height

10'

Wall Construction

2' x 6" Frame main level, 8" block basement

Exterior Finish

Ledgestone combines w/ lap and shake siding on front,

Floor One Sq Ft

1880

Floor Two Sq Ft

0

Floor Three Sq Ft

0

Bonus Sq Ft

0

Basement Sq Ft

1950

Porches Sq Ft

623

Garage Sq Ft

910

Total Covered Sq Ft

5363

Balcony Sq Ft

0

Main Roof Pitch

7' 12"

Foundation

Basement, Crawl Space, Slab, Walkout Basement

Master Bedroom Floor

1

Laundry Floor

1

Additional Information

No Materials List available.

Reverse Options

Mirror, Right-Reading

Optional Foundation

Slab, Crawl Space, Basement, Walkout Basement
