House Plan #H-9408

Name: H-9408 - AmazingPlanscom
SKU: H-9408
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

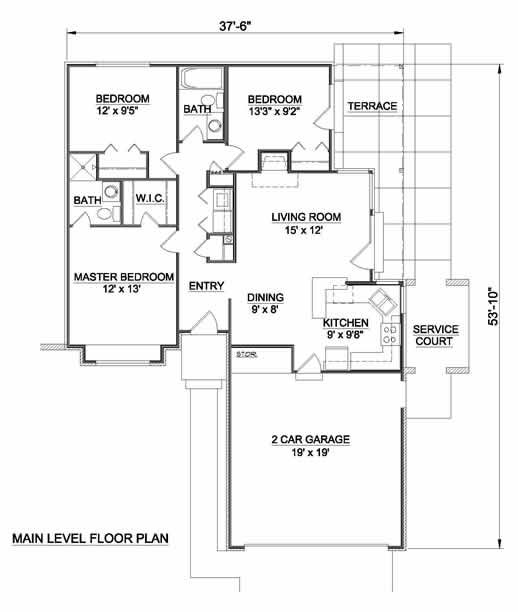

Features three bedrooms and two baths. A tiled entry leading to an open Dining/Living Room area with optional fireplace and atrium door leading to the Terrace. The efficient Kitchen features a corner window and eating bar overlooking the Living Room. The Master Bedroom is complete with a walk-in closet and private bath. The Laundry is conveniently located in the bedroom area.

1086 sq ft

Packages From $400.00

See What’s Included ›

Select Package⌄

1 Set$400.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

5 Sets$450.00DIGITAL PDF PACKAGE Recommended

Reproducible Vellum$800.00DIGITAL PDF PACKAGE Recommended

Select Foundation⌄

Crawlspace Foundation$0.00Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$50.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

1086

Plan Type

House

Plan Sets

1 Set, 5 Sets, Reproducible Vellum

Foundation Options

Crawl Space, Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

17' 10"

Main Ceiling Height

Wall Construction

2x4

Floor One Sq Ft

966

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

361

Total Covered Sq Ft

1472

Balcony Sq Ft

Main Roof Pitch

6 12

Foundation

Crawl Space

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
