House Plan #H-9005

Name: H-9005 - AmazingPlanscom
SKU: H-9005
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

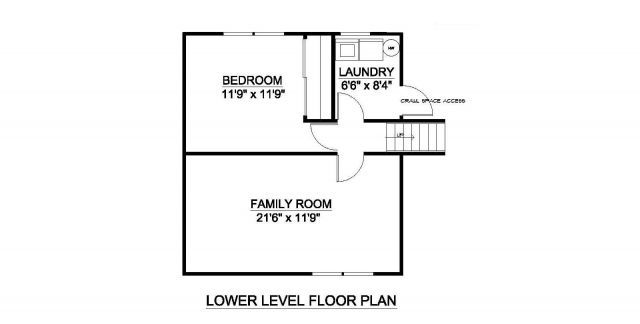

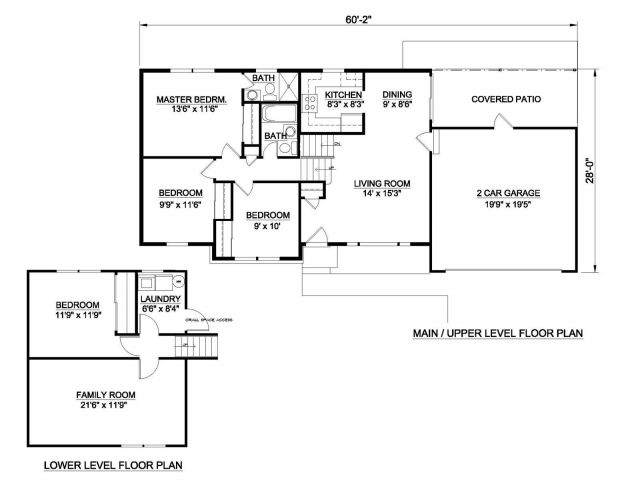

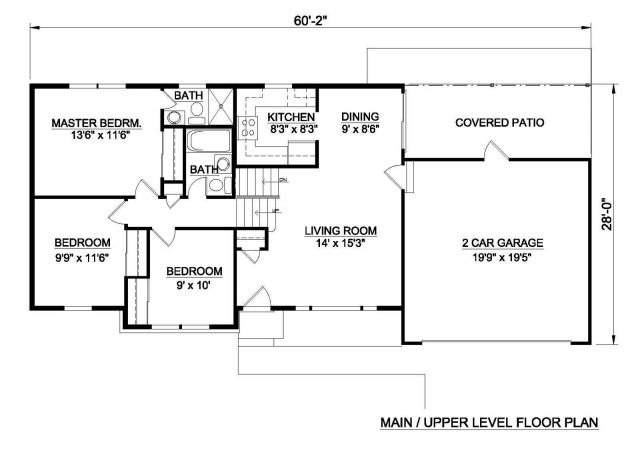

This split-level home features four bedrooms and attached two-car garage. The tiled Entry opens into a spacious Living Room that connects with a family sized Dining Area. An efficient “U” shaped Kitchen is located next to the Dining Area. The Master Suite located on the upper level includes a private bath with a step-in shower. Two additional upper level bedrooms share a full hall bath. The lower level includes a large Family Room and a fourth bedroom or study.

1426 sq ft

Packages From $400.00

See What’s Included ›

Select Package⌄

1 Set$400.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

5 Sets$450.00DIGITAL PDF PACKAGE Recommended

Reproducible Vellum$800.00DIGITAL PDF PACKAGE Recommended

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$50.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

1426

Plan Type

House

Plan Sets

1 Set, 5 Sets, Reproducible Vellum

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

20' 8"

Main Ceiling Height

Wall Construction

2x4

Floor One Sq Ft

438

Floor Two Sq Ft

494

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

494

Porches Sq Ft

Garage Sq Ft

385

Total Covered Sq Ft

1826

Balcony Sq Ft

Main Roof Pitch

8:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
