House Plan #GHD4017 Duplex

Name: GHD4017 Duplex - AmazingPlanscom
SKU: GHD4017 Duplex
Availability: InStock

Email to a Friend Be the first to review this product

Price range: $120.00 through $1,300.00

Quick Overview

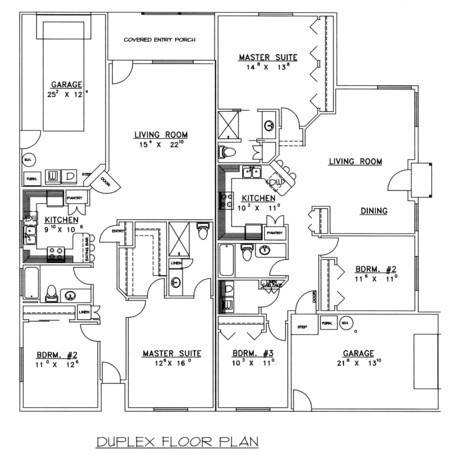

UNIT A 1235 sq. ft.
UNIT B 1343 sq. ft.
UNIT A GARAGE 321 sq. ft.
UNIT B GARAGE 302 sq. ft.

*Standard Frame Construction
*Duplex
*1 Car Garage For Each Unit
*Covered Entry Porch
*Large Walk-In Closet
*Large Living Room
*Dining Room
*Kitchen With Eating Bar

2578 sq ft

Choose Your Plan Package

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Details

UNIT A 1235 sq. ft.
UNIT B 1343 sq. ft.
UNIT A GARAGE 321 sq. ft.
UNIT B GARAGE 302 sq. ft.

*Standard Frame Construction
*Duplex
*1 Car Garage For Each Unit
*Covered Entry Porch
*Large Walk-In Closet
*Large Living Room
*Dining Room
*Kitchen With Eating Bar

Ask Designer Free Modification Estimate More By This Designer Customize With AI

Additional Information

Overall Living Sq Ft	2578
Plan Type	Multi-Plex
Plan Sets	*Study Kit, 5 Sets, 8 Sets, CAD File, Reproducibles
Foundation Options	Slab
Bedrooms	5
Full Baths	4
Garage Stalls	2
Levels	1
Width Feet	62
Width Inches	0
Depth Feet	58
Depth Inches	4
Ridge Height	21'11"
Main Ceiling Height	778
Wall Construction	2x6
Exterior Finish	Lap siding
Floor One Sq Ft	2578
Floor Two Sq Ft	0
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	0
Porches Sq Ft	0
Garage Sq Ft	623
Total Covered Sq Ft	3201
Balcony Sq Ft	0
Main Roof Pitch	6 12
Foundation	Slab
Master Bedroom Floor	1
Laundry Floor	1
Reverse Options	Right-Reading
Additional Sets	1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Categories: AP-GHD512, Designer, Duplex & Multiplex
