House Plan #G2-2622 Ravello

Name: G2-2622 Ravello - AmazingPlanscom
SKU: G2-2622 Ravello
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

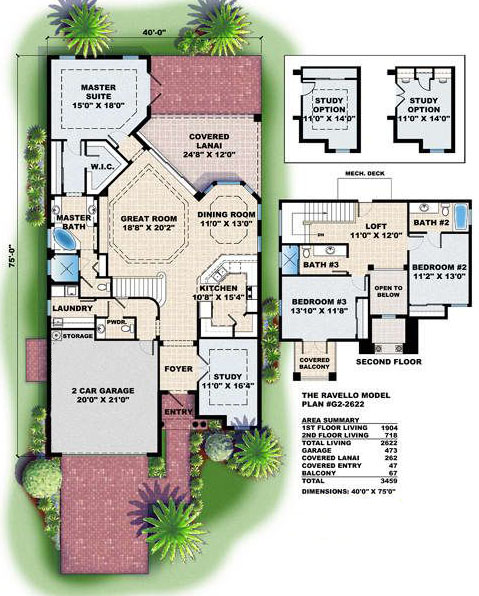

Charm abounds in the Ravello Mediterranean villa house plan. Old World features are accentuated by high vaulted and coffered ceilings. The private master suite opens to the lanai and each of the upstairs bedrooms has the luxury of its own bathroom. Designed for a narrow lot this home plan may be for you.

2622 sq ft

Packages From $1,400.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,400.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Reproducible Set$1,400.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$1,400.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

2622

Plan Type

House

Plan Sets

CAD File, PDF File (Recommended), Reproducible Set

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

29' 2"

Main Ceiling Height

2951

Wall Construction

CMU;Frame

Exterior Finish

Stucco

Floor One Sq Ft

1904

Floor Two Sq Ft

718

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

250

Garage Sq Ft

473

Total Covered Sq Ft

3459

Balcony Sq Ft

Main Roof Pitch

6 12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
