House Plan #F2-2851 San Gabriel

Name: F2-2851 San Gabriel - AmazingPlanscom
SKU: F2-2851 San Gabriel
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

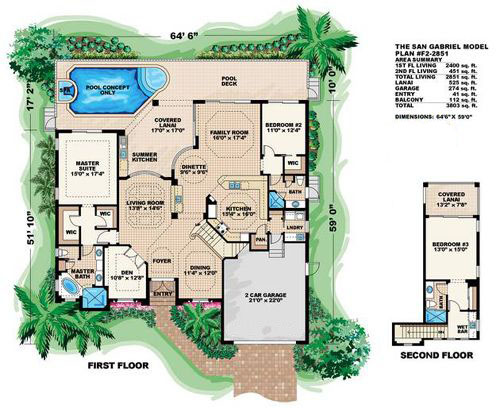

Mediterranean style that will fit on a smaller lot defines this San Gabriel home plan of over 2800 sq. ft. Your guests will feel welcome in their own quarters upstairs complete with covered lanai full bath and wet bar. Downstairs floor plan find the master suite with two walk-in closets and access to the lanai. Family room living room dinette kitchen with island and walk-in pantry dining area laundry another bathroom and bedroom and den complete the first floor.

2851 sq ft

Packages From $1,340.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,340.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Reproducible Set$1,340.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$1,340.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

2851

Plan Type

House

Plan Sets

CAD File, PDF File (Recommended), Reproducible Set

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

28' 1"

Main Ceiling Height

1956

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

2400

Floor Two Sq Ft

451

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

525

Garage Sq Ft

274

Total Covered Sq Ft

3803

Balcony Sq Ft

112

Main Roof Pitch

6 12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
