House Plan #CHD59002-28

Name: CHD59002-28 - AmazingPlanscom
SKU: CHD59002-28
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

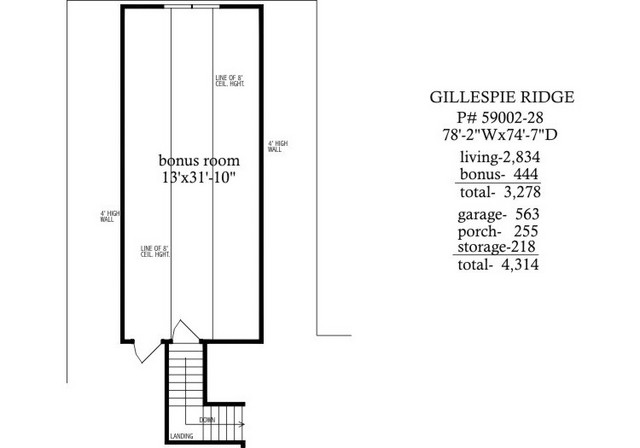

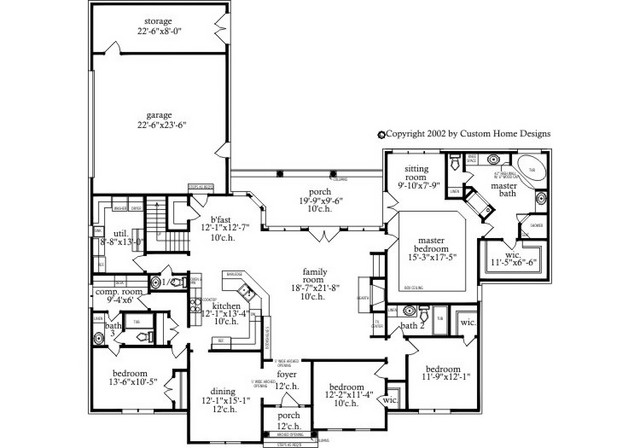

THE MASTER SUITE WITH SITTING ROOM IS SEPERATED FROM THE MASTER BATH WITH A TWO WAY FIREPLACE. TUCKED AWAY NEAR THE GUEST BEDROOM & BATH IS A COMPUTER NOOK. THE TWO SECONDARY BEDROOMS HAVE A WALK IN CLOSET. THE KITCHEN & B’FSAT ROOM ARE OPEN TO THE FAMILY ROOM AND SEPERATED WITH A BARLEDGE. BESIDE THE LARGE WALK IN PANTRY ARE STAIRS THAT LEAD TO A BONUS ROOM FOR FURTHER
EXPANSION.

2834 sq ft

Packages From $950.00

See What’s Included ›

Select Package⌄

5 Plan Sets$950.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

8 Plan Sets$1,000.00DIGITAL PDF PACKAGE Recommended

Reproducible Vellum$1,425.00DIGITAL PDF PACKAGE Recommended

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Mirror Reverse$50.00

Mirrors the plan layout. Text and dimensions may appear reversed, so this option is mainly for basic orientation review.

Right Reading Reverse$150.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Overall Living Sq Ft	2834
Plan Type	House
Plan Sets	5 Plan Sets, 8 Plan Sets, Reproducible Vellum
Foundation Options	Slab
Bedrooms	4
Full Baths	3
Garage Stalls	2
Levels	1
Width Feet	78
Width Inches	2
Depth Feet	74
Depth Inches	7
Ridge Height	27'-7"
Main Ceiling Height	323
Wall Construction	2x4
Exterior Finish	STUCCO & BRICK
Floor One Sq Ft	2834
Floor Two Sq Ft	0
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	0
Porches Sq Ft	255
Garage Sq Ft	563
Total Covered Sq Ft	4314
Balcony Sq Ft	0
Main Roof Pitch	10 1:2
Foundation	4522
Master Bedroom Floor	1
Laundry Floor	1
Reverse Options	Mirror, Right-Reading
Additional Sets	1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
Half Baths	1
