House Plan #ARC-Loudon

Name: ARC-Loudon - AmazingPlanscom
SKU: ARC-Loudon
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

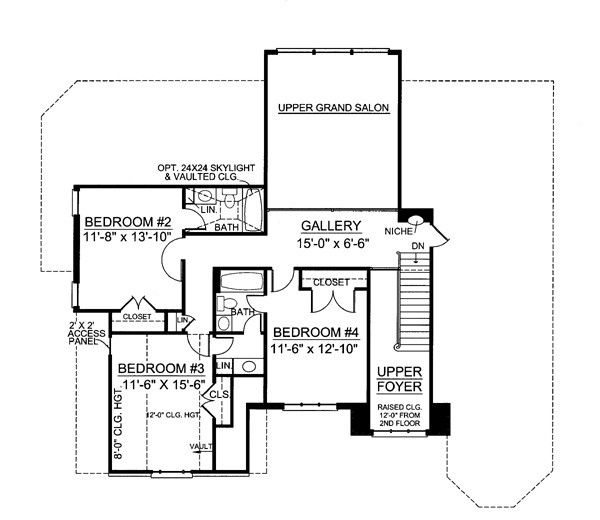

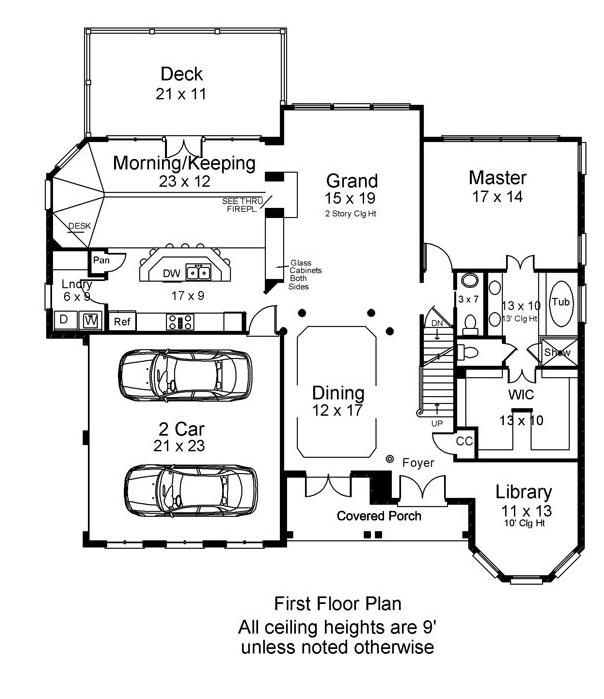

This elegant two-story masterpiece is an amenity-filled retreat for any large family. Two-story ceilings enhance the foyer and the grand salon, which shares a see-through fireplace with the vaulted morning/keeping room. Columns define the dining room to the left of the foyer; to the right is a bayed library with an arched entrance. The spacious master suite includes two walk-in closets and a lavish private bath. Upstairs, three family bedrooms, one with a private bath, reside along a gallery hall that overlooks the foyer.

2870 sq ft

Packages From $1,295.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,295.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Five Sets$1,475.00DIGITAL PDF PACKAGE Recommended

PDF (Single Build)$1,575.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$2,095.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Walkout Basement Foundation$0.00 Basement unfinished

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$200.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Overall Living Sq Ft	2870
Plan Type	House
Plan Sets	CAD File, Five Sets, Five Sets + PDF File, PDF File (Recommended)
Foundation Options	Walkout Basement
Bedrooms	3
Full Baths	3
Garage Stalls	2
Levels	2
Width Feet	58
Width Inches	0
Depth Feet	60
Depth Inches	0
Ridge Height	34
Main Ceiling Height	9'
Wall Construction	2x4
Floor One Sq Ft	1963
Floor Two Sq Ft	907
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	1914
Porches Sq Ft	0
Garage Sq Ft	0
Total Covered Sq Ft	0
Balcony Sq Ft	0
Main Roof Pitch	12:12
Foundation	Walkout Basement
Master Bedroom Floor	1
Laundry Floor	1
Reverse Options	Right Reading Reverse
Half Baths	1
Secondary Ceiling Height	8
