House Plan #ARC-Anderson Estate

Name: ARC-Anderson Estate - AmazingPlanscom
SKU: ARC-Anderson Estate
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

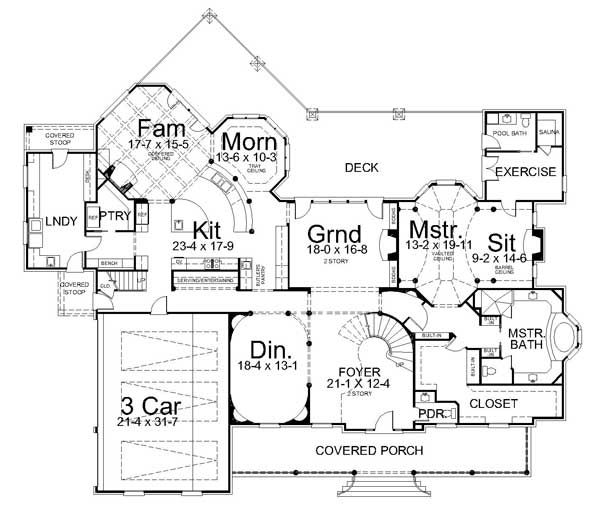

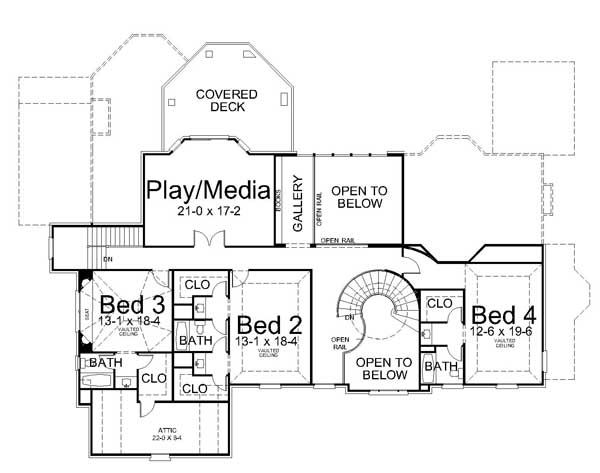

This two-story home plan has an inviting rocking chair main covered porch leading to the grand foyer. The adjoining living and dining rooms with pillared entries provide an impressive formal area off the front foyer. The master suite features a walk-through dressing area with a generous closet and a lavish master bath with his and hers vanities. Off the master suite is also an exercise room with pool bath and sauna. A sweeping spiral staircase leads to the second story, featuring a play/media room, three bedrooms with full baths and a covered deck.

5356 sq ft

Packages From $1,695.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,695.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

Five Sets$1,875.00DIGITAL PDF PACKAGE Recommended

PDF (Single Build)$1,975.00DIGITAL PDF PACKAGE Recommended

CAD Files (Plus PDF, Unlimited Build)$2,495.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Crawlspace Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$200.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Overall Living Sq Ft	5356
Plan Type	House
Plan Sets	CAD File, Five Sets, Five Sets + PDF File, PDF File (Recommended)
Foundation Options	Crawl Space
Bedrooms	4
Full Baths	5
Garage Stalls	3
Levels	2
Width Feet	93
Width Inches	0
Depth Feet	81
Depth Inches	0
Ridge Height	34' 8"
Main Ceiling Height	10'
Wall Construction	2x4
Floor One Sq Ft	3432
Floor Two Sq Ft	1924
Floor Three Sq Ft	0
Bonus Sq Ft	0
Basement Sq Ft	0
Porches Sq Ft	0
Garage Sq Ft	0
Total Covered Sq Ft	0
Balcony Sq Ft	0
Main Roof Pitch	12:08
Foundation	Crawl Space
Master Bedroom Floor	1
Laundry Floor	1
Reverse Options	Right Reading Reverse
Half Baths	1
Secondary Ceiling Height	9
