House Plan #AR5315-0352

Name: AR5315-0352 - AmazingPlanscom
SKU: AR5315-0352
Availability: InStock

Email to a Friend Be the first to review this product

$1,600.00 – $2,200.00

Quick Overview

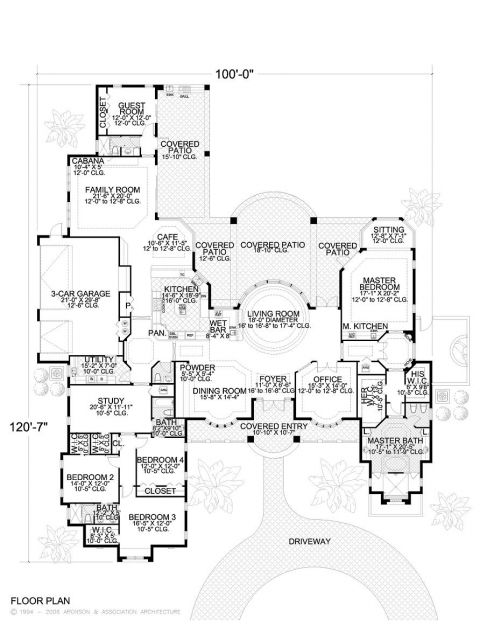

One Story
Five Bedrooms + 1 Study (possible to become bedroom)
Three Car Garage with workspace (side entry)
Four and a half Bathrooms
Contemporary design provides impressive curb appeal
Large Covered Patio
Grand Covered Entry
High ceilings and two volume spaces makes this design feel larger than life
Contemporary open layout gives this home a spacious appeal
Huge Island Kitchen with Eating Bar opens to Family Room
Enormous Rotunda style Living Room with Wet Bar
This design Boasts the ultimate Master Suite
Guest Suite has cabana bath and private entrance
You will love this design if you’re looking for a home with a spacious
feeling while providing more private places

5315 sq ft

Packages From $1,600.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,600.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,950.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Stem Wall$0.00

Additional Options⌄

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

Additional Information

Overall Living Sq Ft

5315

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Stem Wall

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

100

Width Inches

Depth Feet

120

Depth Inches

Ridge Height

23' 3"

Main Ceiling Height

127

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

5315

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

1439

Garage Sq Ft

682

Total Covered Sq Ft

7436

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Stem Wall

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
