House Plan #AR5204-9947

Quick Overview

Two Story
Five bedroom
Four full baths plus Cabana Bath
Three car Garage
This Spanish style manor offers an enormous amount of living space
Columns and arches provide a majestic appearance
Luxurious inside and out
Covered balconies and Lanai
Study / Den provides a cozy retreat to entertain special guests
Paneled double front doors with transom accent the covered entrance
Chef’s dream Kitchen with island eating bar and Cafe opens to the
large Family Room
Luxurious Master Suite with enormous Walk-In-Closets tray ceilings
with regal Master bath with sitting area
Large Living Room with wet bar
The exquisite arrangement of the covered entry and formal foyer make
a dramatic first impression invites guests through a columned vestibule
into the Living Room

5204 sq ft

Packages From $1,600.00

See What’s Included ›
Select Package
Select Foundation
Additional Options
Your Total:$0.00
Price Match Guarantee View our 110% Price Match Policy

Details

Two Story
Five bedroom
Four full baths plus Cabana Bath
Three car Garage
This Spanish style manor offers an enormous amount of living space
Columns and arches provide a majestic appearance
Luxurious inside and out
Covered balconies and Lanai
Study / Den provides a cozy retreat to entertain special guests
Paneled double front doors with transom accent the covered entrance
Chef’s dream Kitchen with island eating bar and Cafe opens to the
large Family Room
Luxurious Master Suite with enormous Walk-In-Closets tray ceilings
with regal Master bath with sitting area
Large Living Room with wet bar
The exquisite arrangement of the covered entry and formal foyer make
a dramatic first impression invites guests through a columned vestibule
into the Living Room

Additional Information

Overall Living Sq Ft

5204

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

5

Full Baths

4

Garage Stalls

3

Levels

2

Width Feet

65

Width Inches

2

Depth Feet

78

Depth Inches

2

Ridge Height

32'-4"

Main Ceiling Height

3728

Wall Construction

CMU

Exterior Finish

Stucco

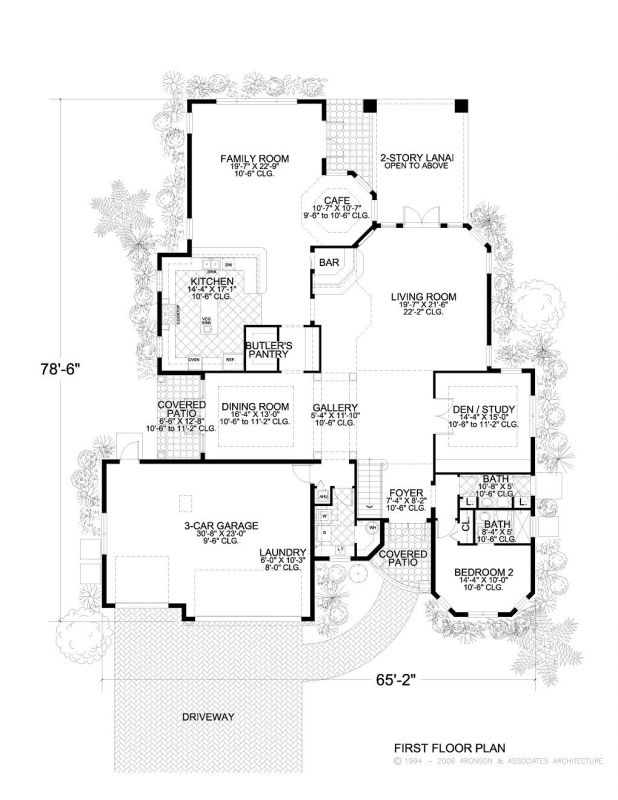

Floor One Sq Ft

2814

Floor Two Sq Ft

2390

Floor Three Sq Ft

0

Bonus Sq Ft

0

Basement Sq Ft

0

Porches Sq Ft

159

Garage Sq Ft

734

Total Covered Sq Ft

6097

Balcony Sq Ft

0

Main Roof Pitch

5:12

Foundation

Slab

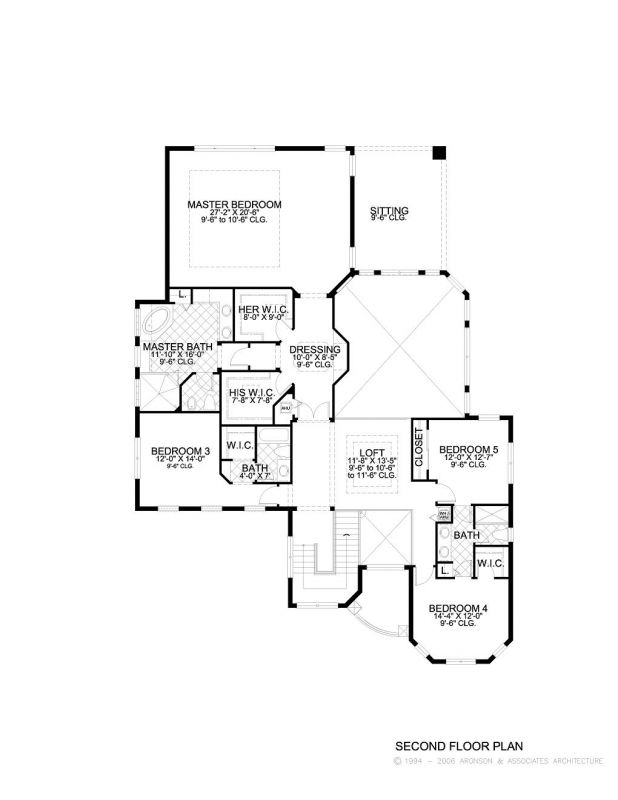

Master Bedroom Floor

2

Laundry Floor

1

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
