House Plan #AR5140-9717

Name: AR5140-9717 - AmazingPlanscom
SKU: AR5140-9717
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

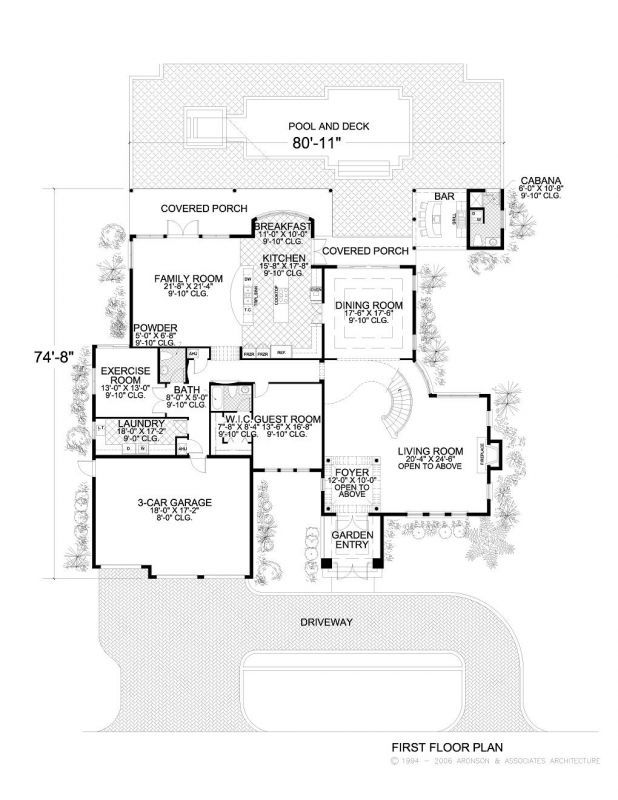

Two Story
Four Bedrooms plus a studio
Exercise Room
Four and a half Baths
Three car Garage
Classic Mediterranean style
Towering Covered Entrance
Luxurious inside and out
Covered balconies
This unique design features a Covered Cabana Bar with Cabana Bath
Eight foot French doors with magnificent arched transom accent
the entrance
Huge island Kitchen with eating bar and breakfast nook and bow window
opens to the Family Room which opens to a covered porch

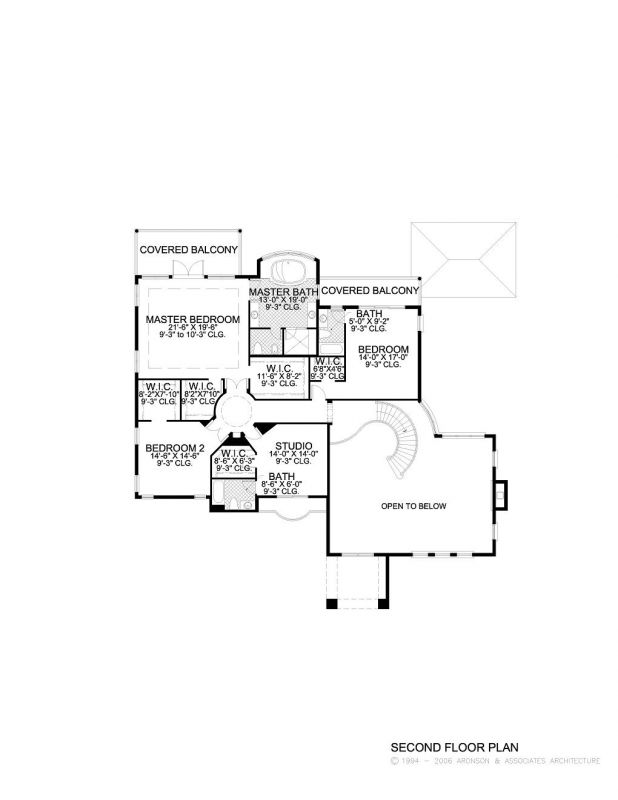

Luxurious Master Suite with large Walk-In-Closets tray ceilings with
regal Master bath opens to private balcony
Large Living Room with two story ceilings and grand winding staircase
and fireplace

5140 sq ft

Packages From $1,600.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,600.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,950.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

5140

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

35'-3"

Main Ceiling Height

3715

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

3079

Floor Two Sq Ft

2061

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

512

Garage Sq Ft

595

Total Covered Sq Ft

6247

Balcony Sq Ft

529

Main Roof Pitch

6 12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
