House Plan #AR5135-01102

Name: AR5135-01102 - AmazingPlanscom
SKU: AR5135-01102
Availability: InStock

Email to a Friend Be the first to review this product

$1,600.00 – $2,200.00

Quick Overview

Two Story
Four Bedrooms includes first floor Maid’s Room
Four and a half Baths
Three car Garage
Sprawling Mediterranean style
Artistic architectural elements provide outstanding curb appeal
Exclusive Porte Coche with covered entrance leads to a formal
Foyer flanked by a Dining Room and cozy Den with tray ceilings
Covered Lanai
Luxurious inside and out

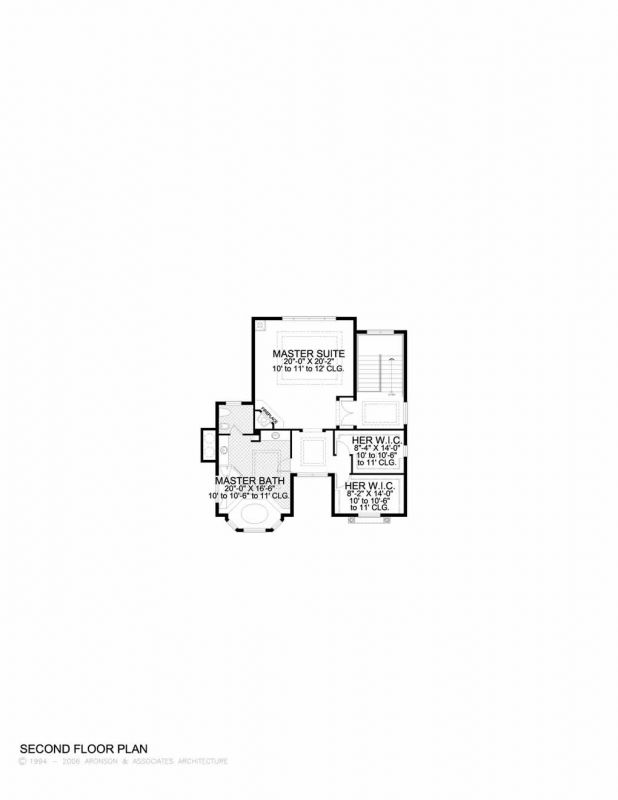

This unique design features a second floor dominated by an elaborate
Master Suite complete with romantic fireplace and large walk-in-closets

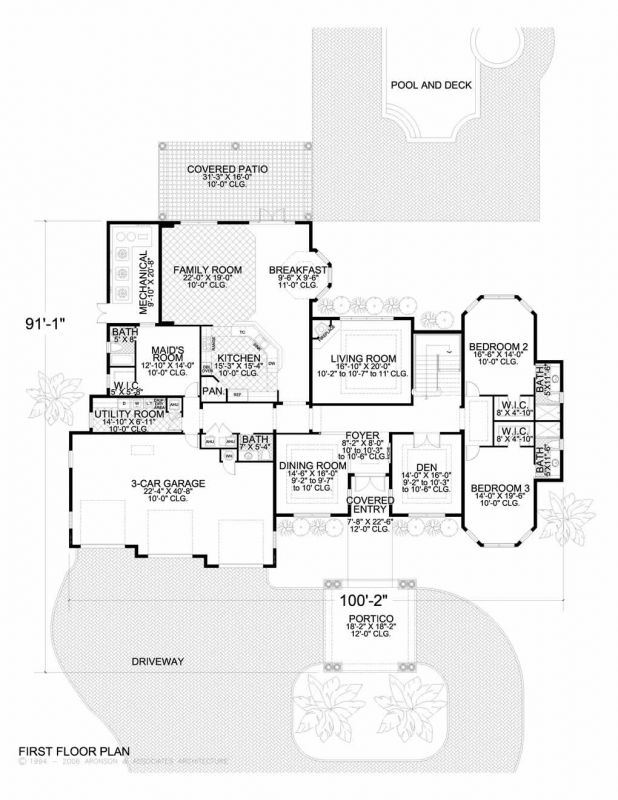

Huge island Kitchen with eating bar and breakfast nook and bow window
opens to the Family Room which opens to a covered Lanai
Large Living Room with tray ceilings and fireplace

5135 sq ft

Packages From $1,600.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,600.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,950.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

Additional Information

Overall Living Sq Ft

5135

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

100

Width Inches

Depth Feet

107

Depth Inches

Ridge Height

29' 6"

Main Ceiling Height

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

3869

Floor Two Sq Ft

1266

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

680

Garage Sq Ft

983

Total Covered Sq Ft

6798

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
