House Plan #AR5131-9608

Name: AR5131-9608 - AmazingPlanscom
SKU: AR5131-9608
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

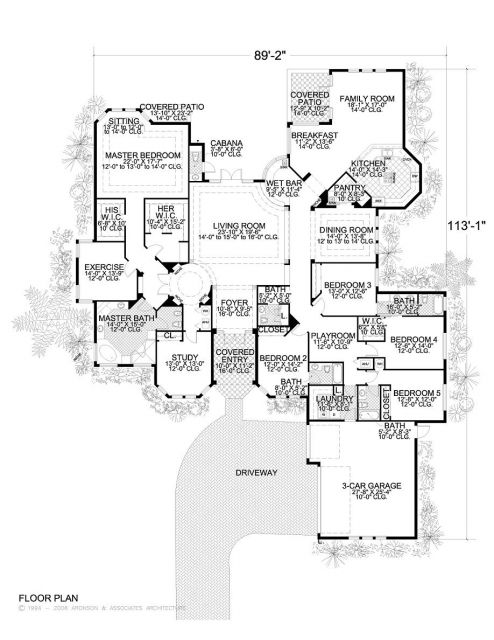

One Story
Five Bedrooms
Three Car Garage
Four and a half Bathroom plus Cabana bathroom
Classic Mediterranean Style
Columns and arches provide strong curb appeal
Eight Foot French Doors with arched transom accent the covered entrance
Grand Covered Entry
Large Covered Patio
Large Island Kitchen with Eating Bar Breakfast Area and Pantry
opens to Family Room
Living Room Dining Room Combination has a Wet Bar
High ceilings makes this design feel larger than life
Contemporary open layout gives this home a spacious appeal
This model includes a truly luxurious Master Suite with exceptionally
large his and her walk-in closets stylish tray ceiling design
a Sitting area and an Exercise Room
You will love this design if you’re looking for a home with a spacious
feeling while providing more private places

5131 sq ft

Packages From $1,600.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,600.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,950.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

5131

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

113

Width Inches

Depth Feet

Depth Inches

Ridge Height

31'

Main Ceiling Height

864

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

5131

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

515

Garage Sq Ft

708

Total Covered Sq Ft

6354

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
