House Plan #AR3368-0421

Name: AR3368-0421 - AmazingPlanscom
SKU: AR3368-0421
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

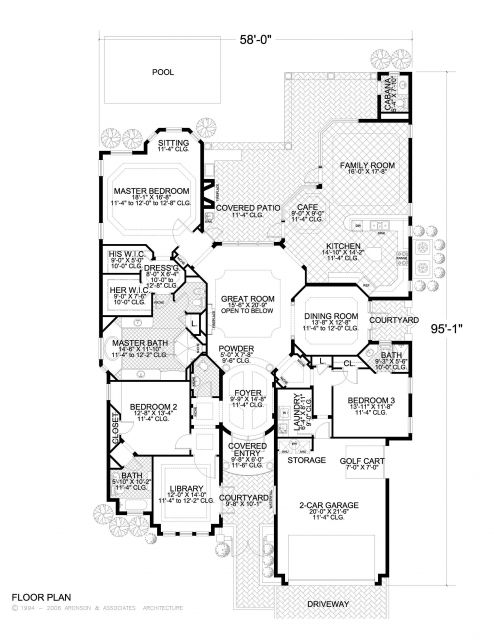

This beautiful one story spanish mediterranean waterfront house features three bedrooms three and a half bathrooms plus a cabana a two-car garage a grand covered entry with eight foot custom wood door and a large covered patio with summer kitchen. The floor plan provides a large island kitchen wiht eating bar and breakfast area opened to the family room a formal dining room opened to a courtyard a cozy library for a perfect retreat and a exclusive master suite with His and Hers walk-in-closets stylish tray ceilings and a large master bathroom with access to covered patio adding to the luxury pf the design.

3368 sq ft

Packages From $1,250.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,250.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,600.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

3368

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

24'-10"

Main Ceiling Height

3348

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

3368

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

621

Garage Sq Ft

540

Total Covered Sq Ft

4529

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
