House Plan #AR2647-2070

Name: AR2647-2070 - AmazingPlanscom
SKU: AR2647-2070
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

Two Story
Five Bedrooms
Two car Garage
Three Baths
Classic Florida Style
High ceilings and two volume spaces make this design feel larger than life

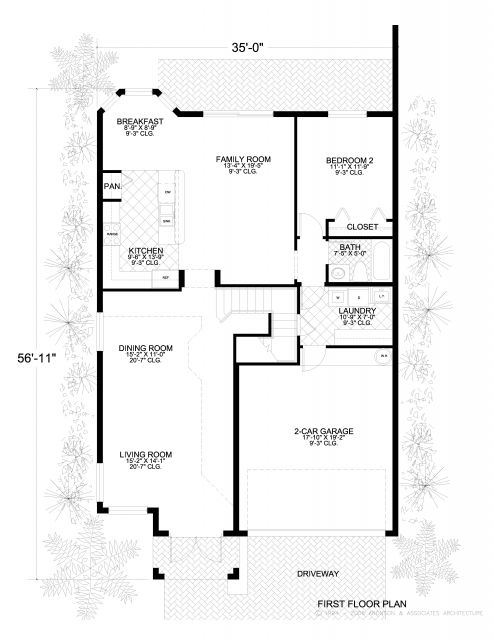

Large island Kitchen with eating bar and pantry is open to Family Room

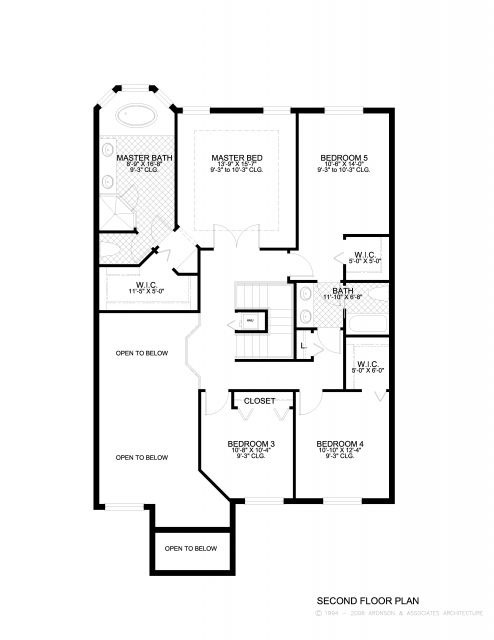

Luxurious Master Suite with large his and hers walk in closets and
tray ceiling and regal Master Bath

2647 sq ft

Packages From $1,150.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,150.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,500.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

2647

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

28'-6"

Main Ceiling Height

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

1338

Floor Two Sq Ft

1309

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

390

Total Covered Sq Ft

3087

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
