House Plan #AR1695-0502

Name: AR1695-0502 - AmazingPlanscom
SKU: AR1695-0502
Availability: InStock

Email to a Friend Be the first to review this product

Price range: $1,350.00 through $1,900.00

Quick Overview

One Story
Four Bedrooms
Two car Garage
Two full Baths plus One Half Bath
Traditional Mediterranean Style
Open Foyer invites guests into the Living Room
Covered entrance
Large Living Room and Dining Room combined to maximize space
Large Family Room opens to Patio

1695 sq ft

Packages From $1,050.00

See What’s Included ›

PDF (Single Build)$1,050.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,400.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Slab Foundation$0.00

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

Additional Information

Overall Living Sq Ft

1695

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

24' 0"

Main Ceiling Height

246

Wall Construction

CMU

Exterior Finish

Stucco

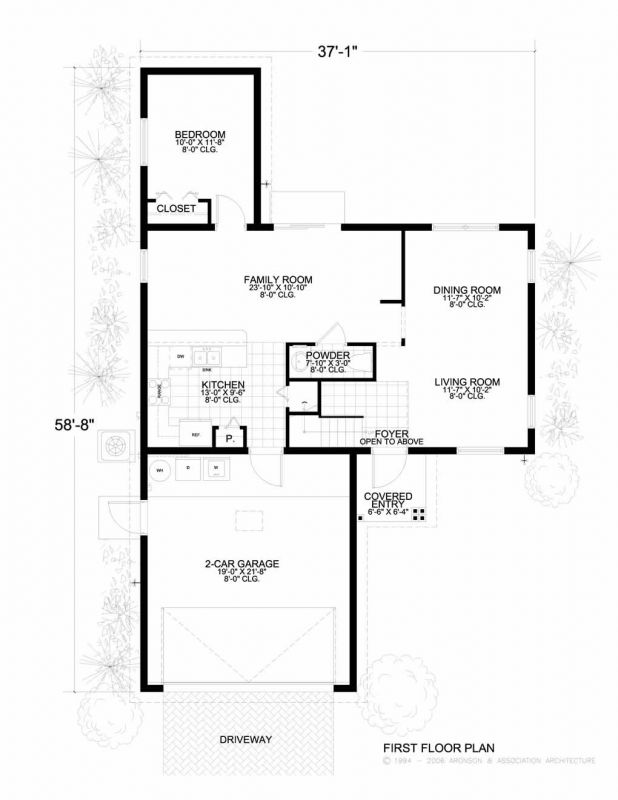

Floor One Sq Ft

970

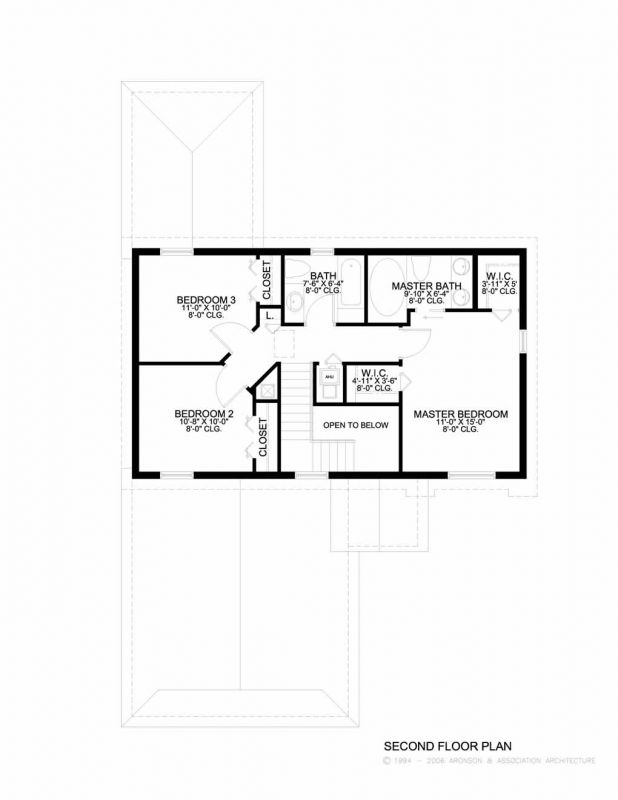

Floor Two Sq Ft

725

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

454

Total Covered Sq Ft

2190

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets

Half Baths
