House Plan #AR1658-9868

Name: AR1658-9868 - AmazingPlanscom
SKU: AR1658-9868
Availability: InStock

Email to a Friend Be the first to review this product

$1,050.00 – $1,650.00

Quick Overview

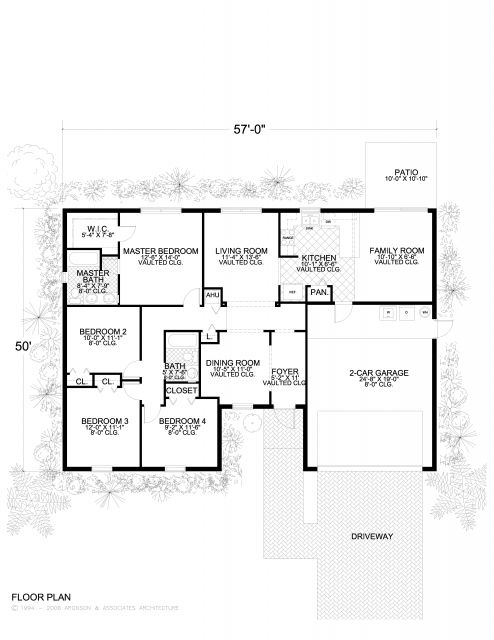

One Story
Four Bedrooms
Two Car Garage
Two Bathrooms
Covered Entry
Covered Rear Patio
Laundry Room Conveniently Located in Garage
Kitchen Adjacent to Family Room with Breakfast Area
Formal Dining Area
Large Master Suite includes Master Bath and Walk-in Closet
Well Thought Out Charming Home

1658 sq ft

Packages From $1,050.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,050.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,400.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Low Price Guarantee Find a lower price and we’ll beat it by 10%. See Details

Details

Additional Information

Overall Living Sq Ft

1658

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

15'

Main Ceiling Height

293

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

1658

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

144

Garage Sq Ft

504

Total Covered Sq Ft

2306

Balcony Sq Ft

Main Roof Pitch

5:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
