House Plan #AR1052-9720

Name: AR1052-9720 - AmazingPlanscom
SKU: AR1052-9720
Availability: InStock

Email to a Friend Be the first to review this product

Quick Overview

Concrete block exterior construction.

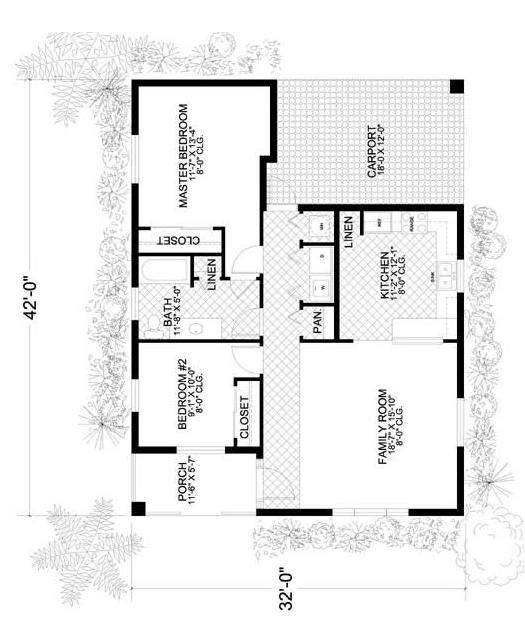

This lovely Mediterranean home demands a second glance.
Entry through the porch takes you and your guests into the generous
family room perfect for entertaining.
A well-equipped kitchen is conveniently found just off of the great room.
The master suite is nestled in the back of this design while the second
bedroom occupies the front creating privacy for all family members.

1052 sq ft

Packages From $1,000.00

See What’s Included ›

Select Package⌄

PDF (Single Build)$1,000.00DIGITAL PDF PACKAGE Recommended

This is the standard electronic plan package for building one home. It includes a complete PDF plan set that can be emailed after purchase and locally printed for your builder, lender, permitting office, or personal planning needs. This option is best when you plan to build the design generally as shown.

CAD Files (Plus PDF, Unlimited Build)$1,350.00DIGITAL CAD + PDF PACKAGE

Choose this option when you expect design changes or want your builder, designer, or draftsperson to work from editable files. The CAD package includes digital drawing files plus a PDF set, along with release language for customizing the plan. CAD files require compatible drafting software and someone experienced with residential plan edits.

Select Foundation⌄

Slab Foundation$0.00

Additional Options⌄

No Options$0.00

No additional upgrade selected.

Right Reading Reverse$250.00

Creates a reversed version of the plan with notes and dimensions adjusted so the drawings remain readable.

No Options$0.00

Your Total:$0.00

Plan Sets

Foundation Options

Additional Sets

Reverse Options

Clear

Price Match Guarantee View our 110% Price Match Policy

Details

Additional Information

Overall Living Sq Ft

1052

Plan Type

House

Plan Sets

CAD File, PDF File

Foundation Options

Slab

Bedrooms

Full Baths

Garage Stalls

Levels

Width Feet

Width Inches

Depth Feet

Depth Inches

Ridge Height

13' 10"

Main Ceiling Height

Wall Construction

CMU

Exterior Finish

Stucco

Floor One Sq Ft

1052

Floor Two Sq Ft

Floor Three Sq Ft

Bonus Sq Ft

Basement Sq Ft

Porches Sq Ft

Garage Sq Ft

220

Total Covered Sq Ft

1344

Balcony Sq Ft

Main Roof Pitch

4:12

Foundation

Slab

Master Bedroom Floor

Laundry Floor

Reverse Options

No Options, Right-Reading

Additional Sets

1 Additional Set, 2 Additional Sets, 3 Additional Sets, 4 Additional Sets, 5 Additional Sets
